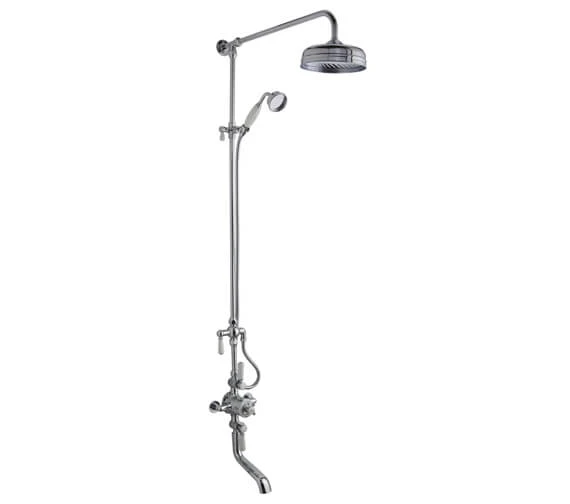

Hudson Reed Topaz Triple Exposed Mixer Shower Valve With Rigid Riser

Hudson Reed Topaz Riser Kit and Triple Thermostatic Valve come with the imprint of top quality design. The inclusive thermostatic shower valve ensures you get the right water temperature. Manufactured from quality brass and coated with shiny chrome, this kit looks stunning and easy to clean and maintain. The valve incorporates a patented cartridge that is highly resistant to calcium build-up, even in areas with hard water. This ensemble includes the riser rail and bath spout, allowing you to have a comfortable and invigorating shower. Suitable for use with all kind of systems, it offers a satisfying and comprehensive shower enabled by the riser kit.

• Exposed wall-mounted installation.
• Size: 194 x 670 x 1260mm [Width x Depth x Height].
• Inlet Centers: 160mm.
• Supplied with rigid riser kit and bath spout.
• The minimum water pressure recommended for smooth working is 0.5 bar [MP-Medium Pressure].
• The minimum flow rate is 4.5 litres per minute at 0.1 bar water pressure.
• Features and Specification:.

• Accurate flow control and excellent flow rates – even at low pressure.
• Thermostatic control to +/- 1 °C even if the water pressure fluctuates.
• In the event of hot or cold water failure, the valve will shut down automatically.
• Suitable for use with all systems, gravity-fed pumped unvented high-pressure or fully modulated combi-boilers.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing – remove the cartridge, turn 180°, and replace.

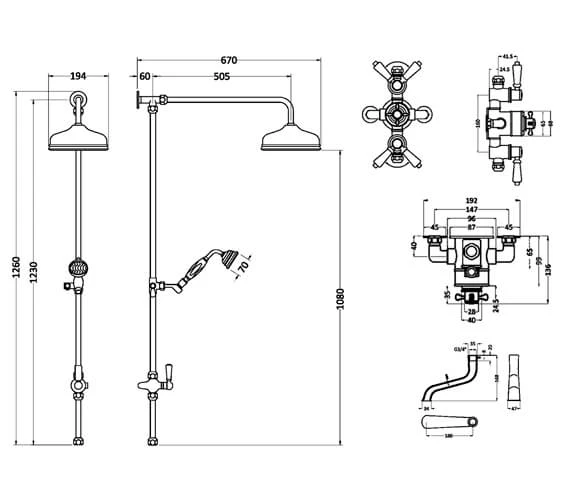

• Refer to the technical drawing for complete size details.
• Download the Fitting Instructions and Customer Data Sheet PDF File from the Additional Info Section.
